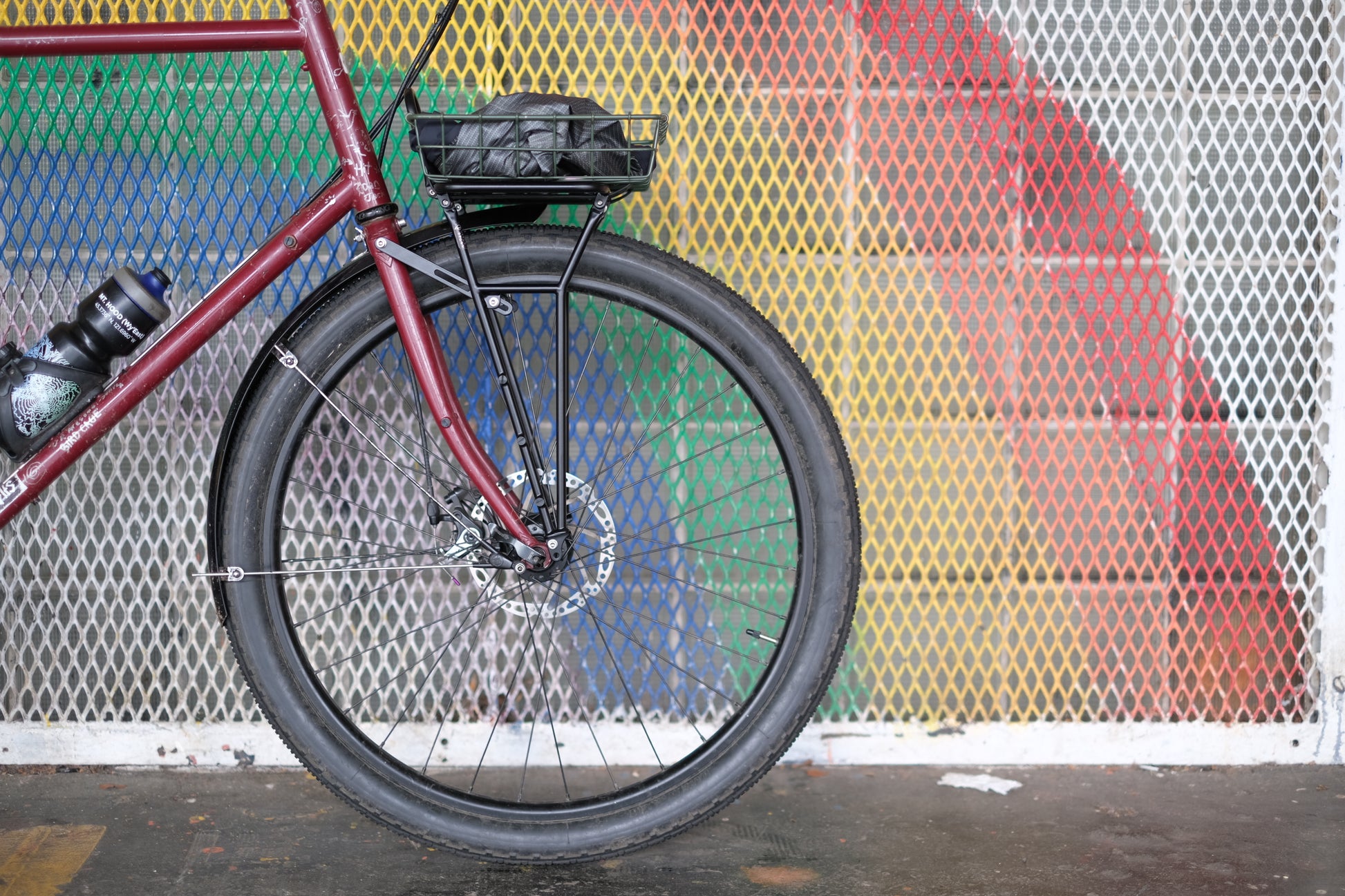

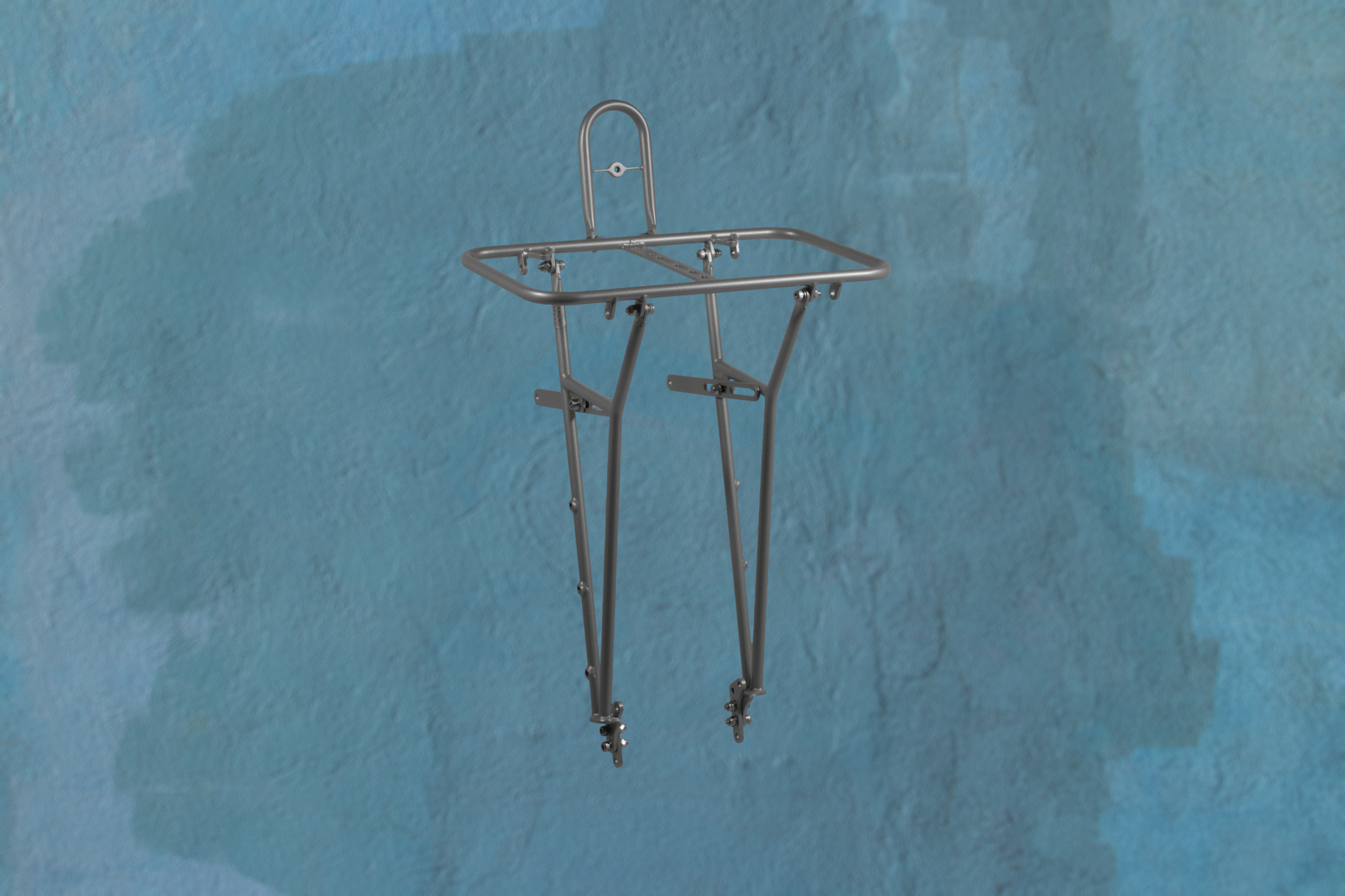

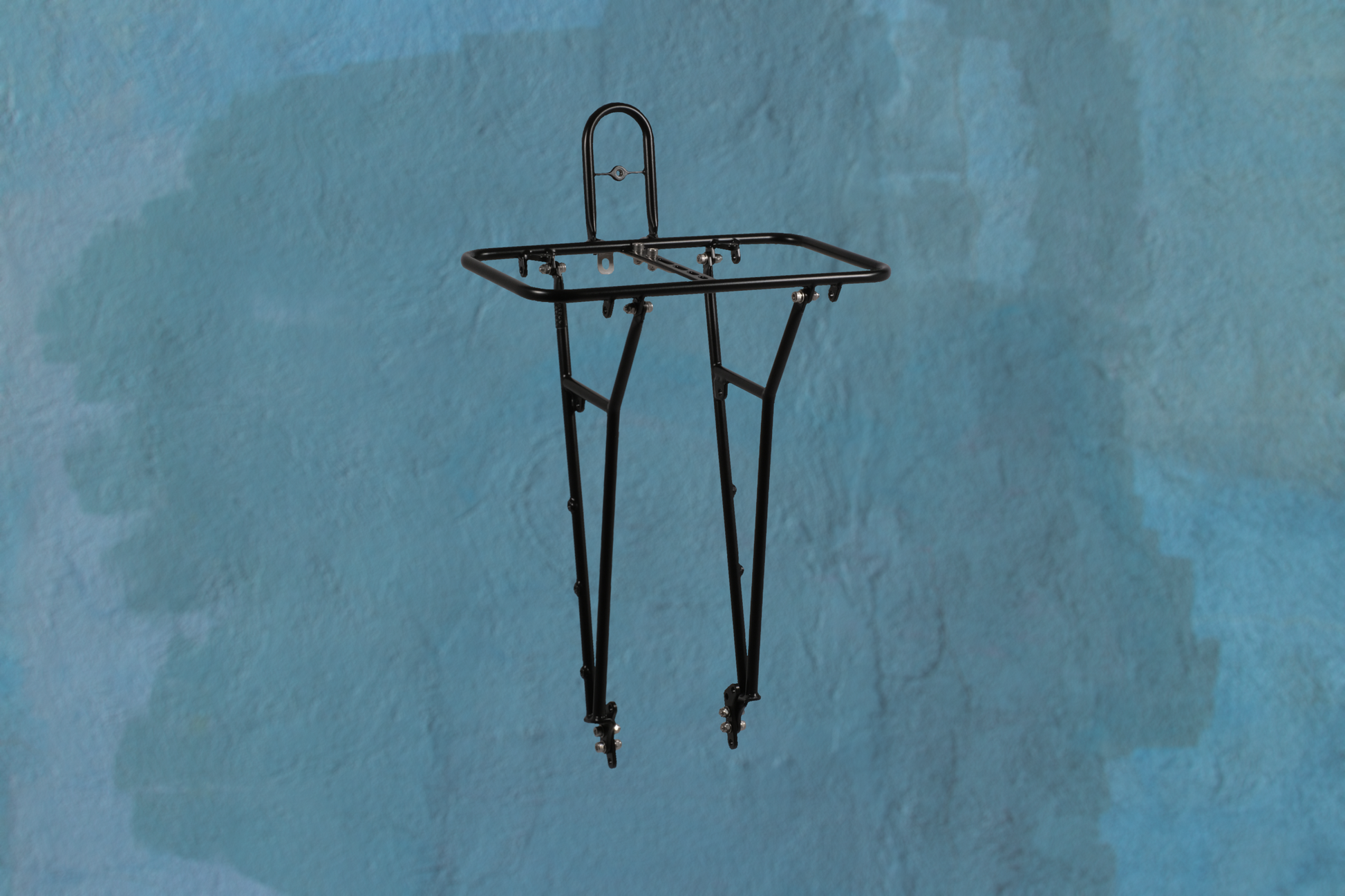

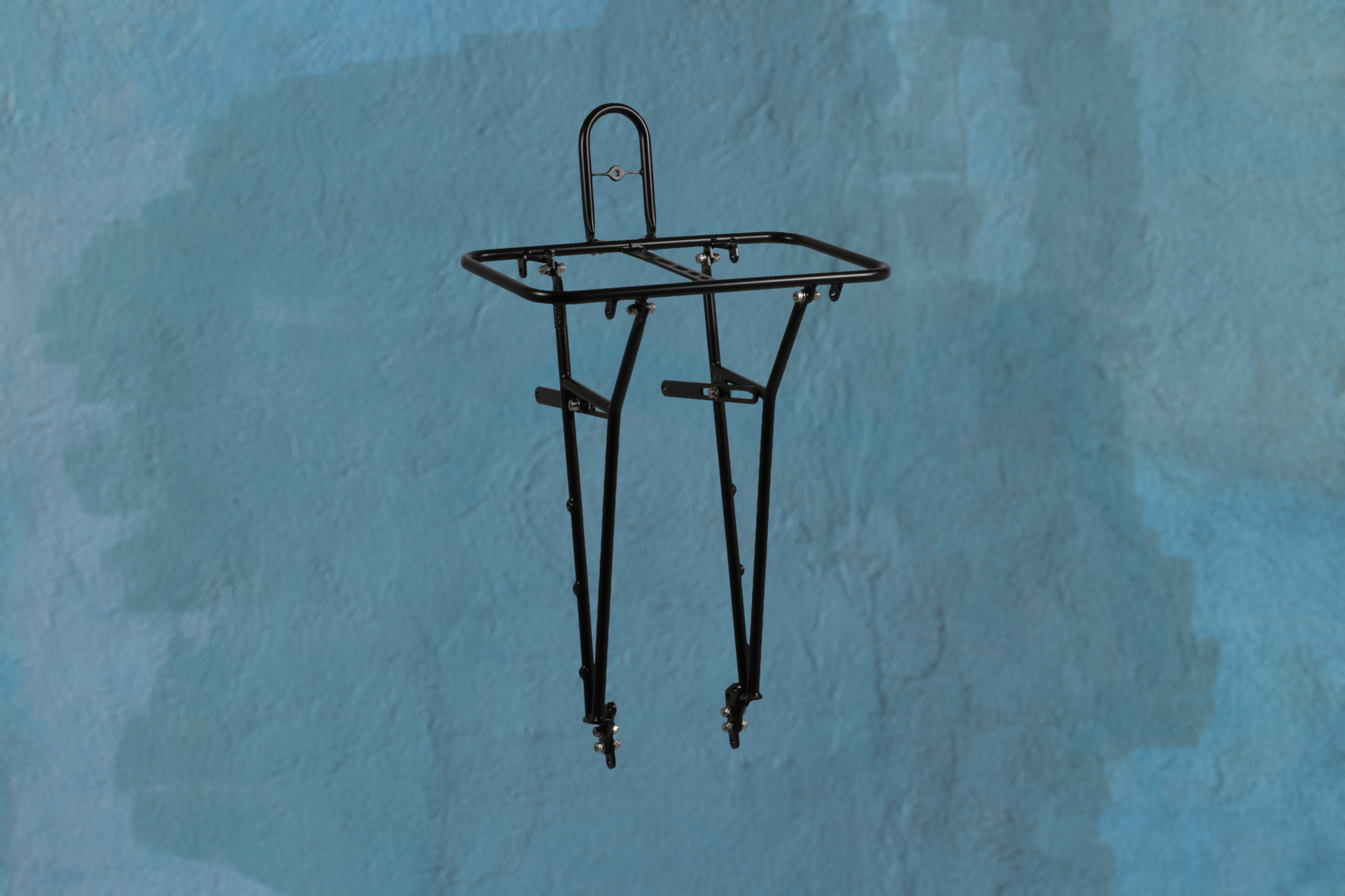

Liminal Rack

Adaptable, strong and lightweight front rack for commuting and bikepacking.

Construction:

• Quality TIG welded 4130 steel tubing
• Durable powdercoat finish
• Stainless steel fasteners

Features:

• Adaptable to a range of tire sizes, dropout types, axle types, and fork widths

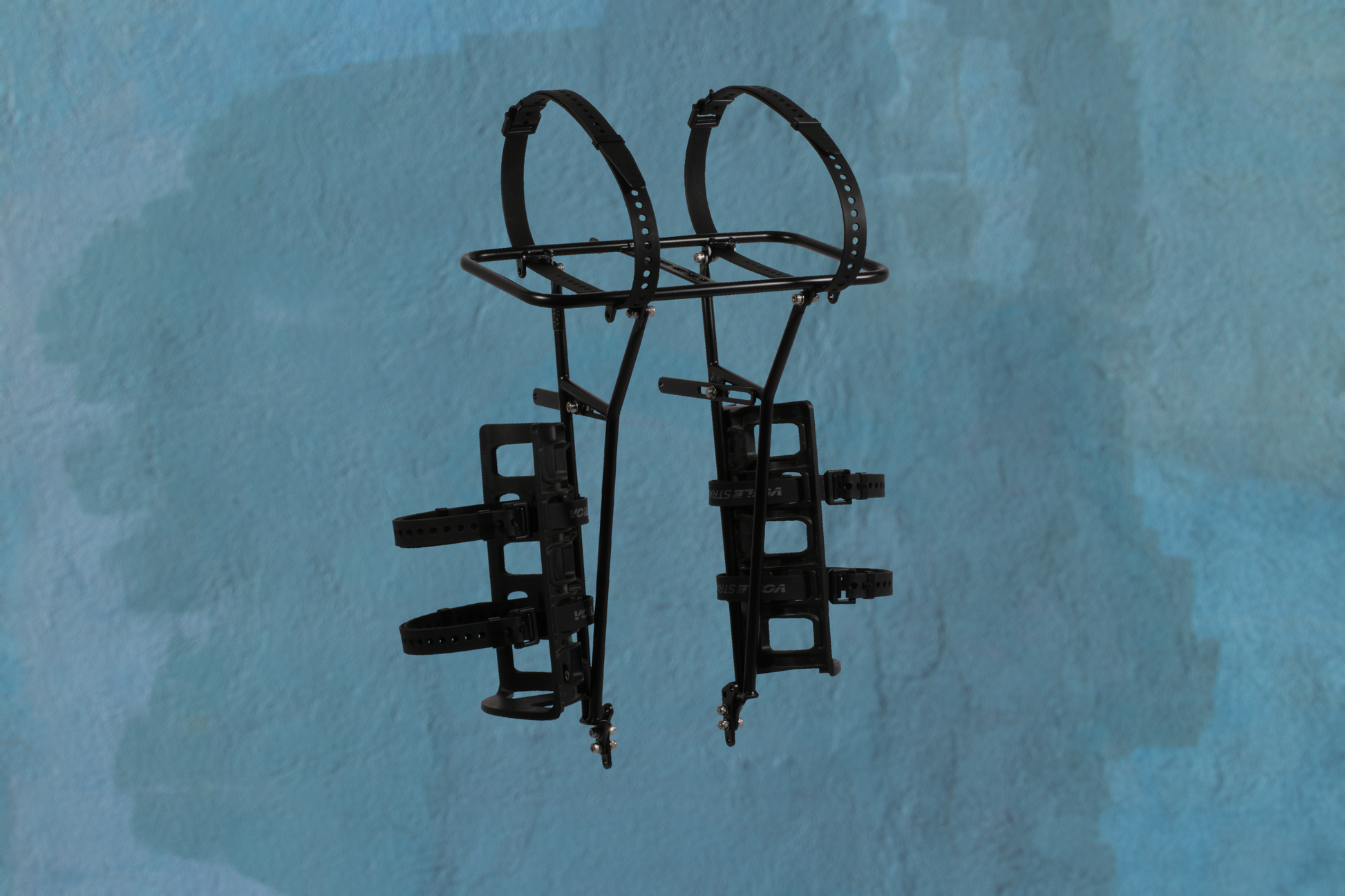

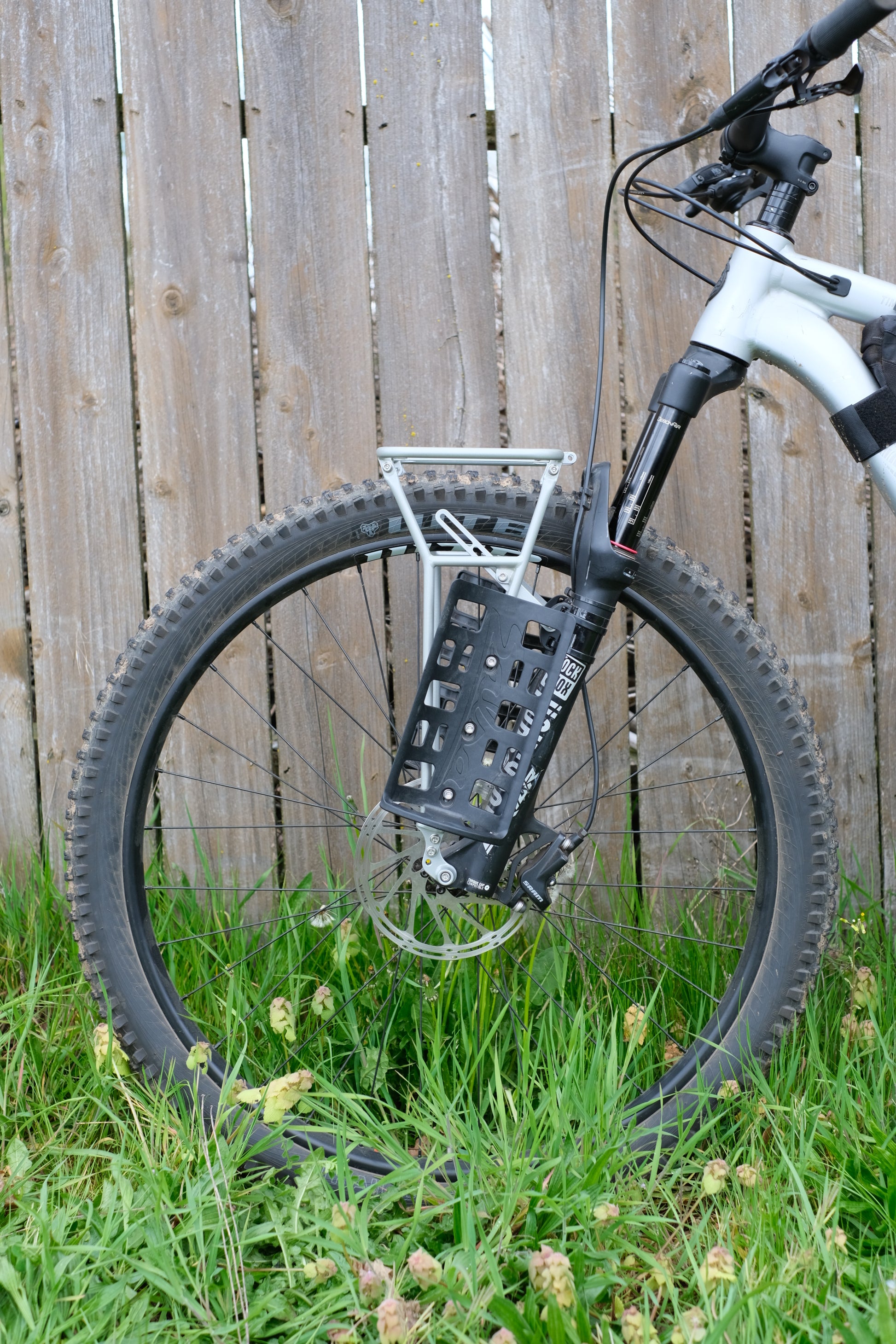

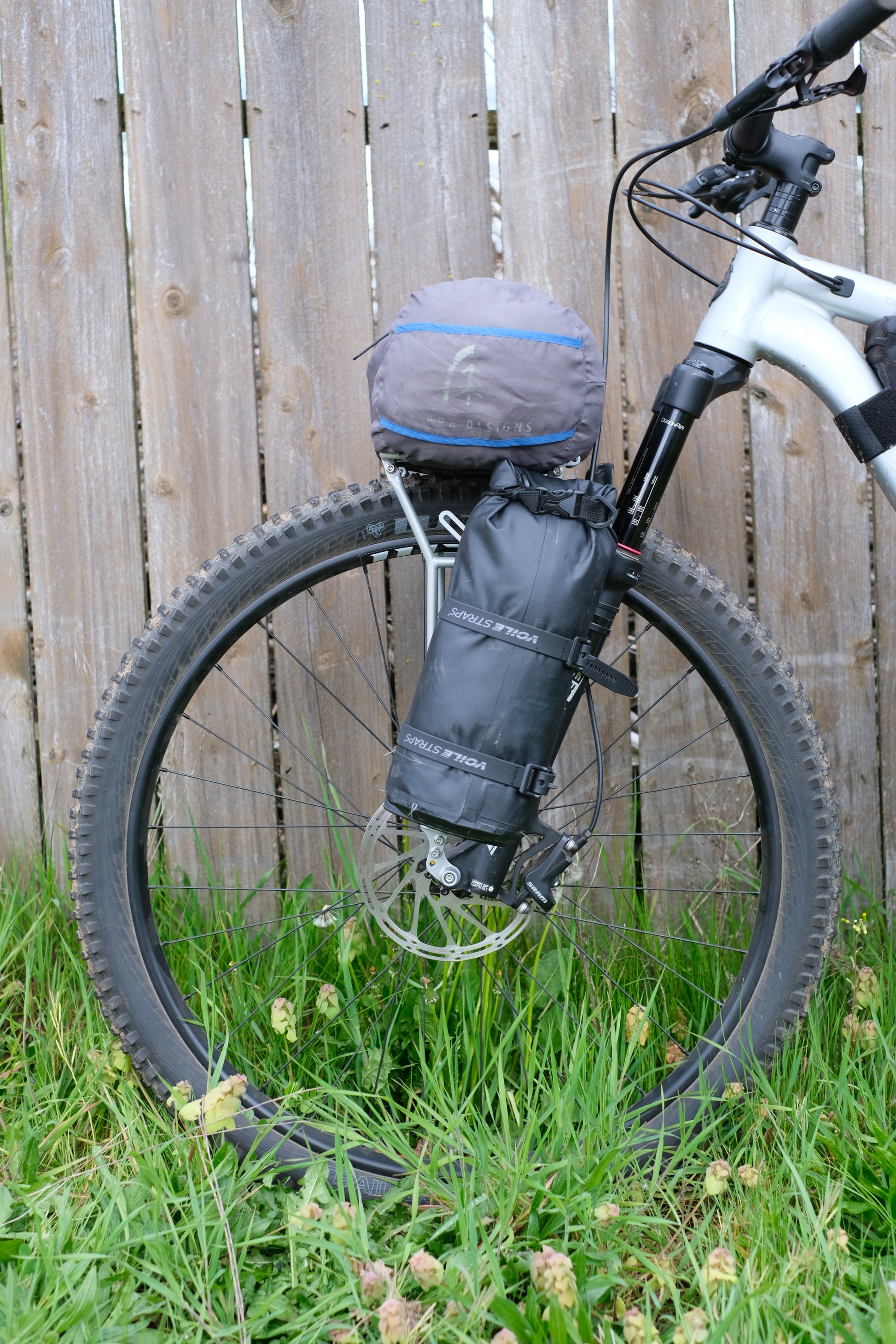

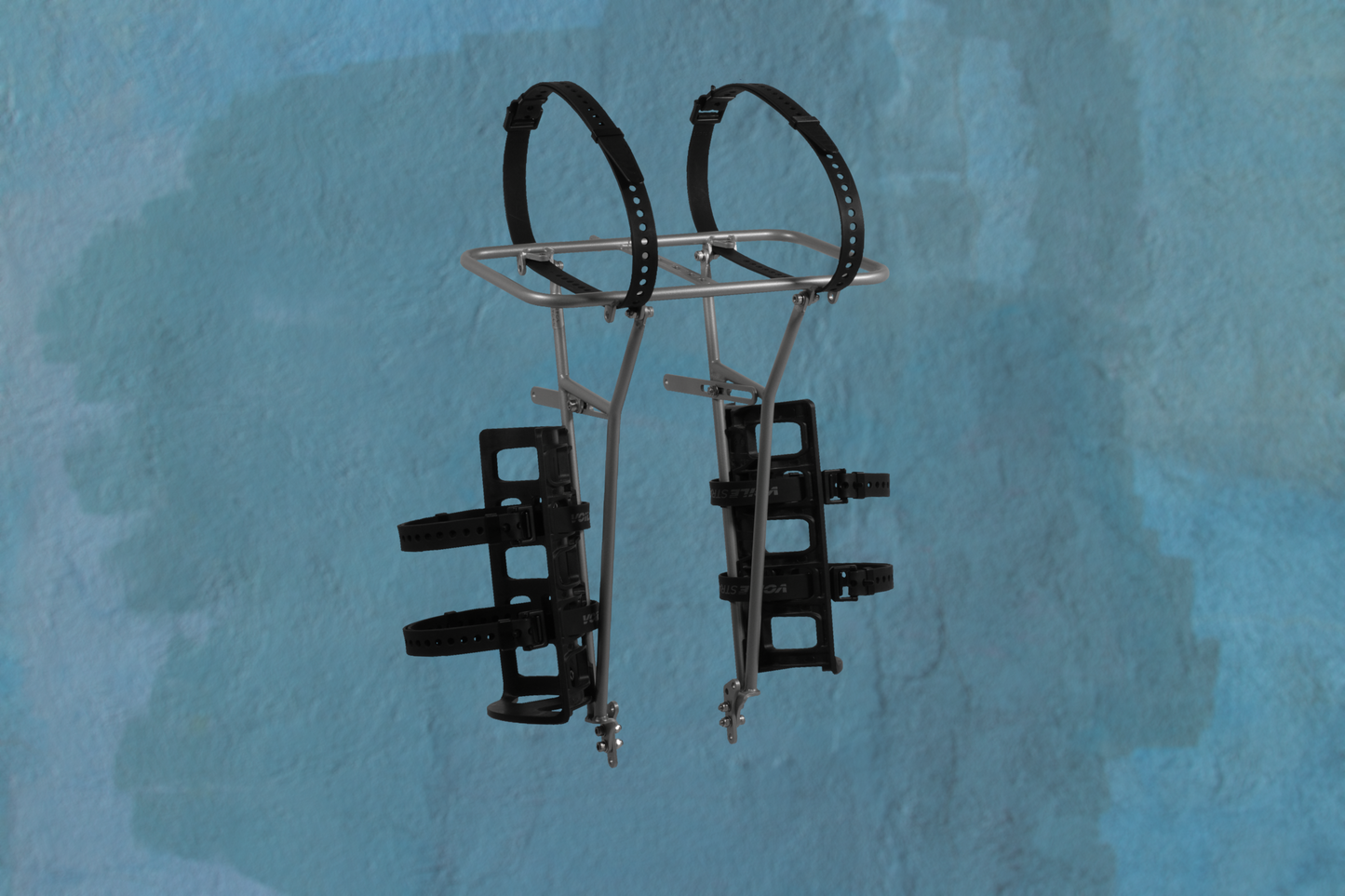

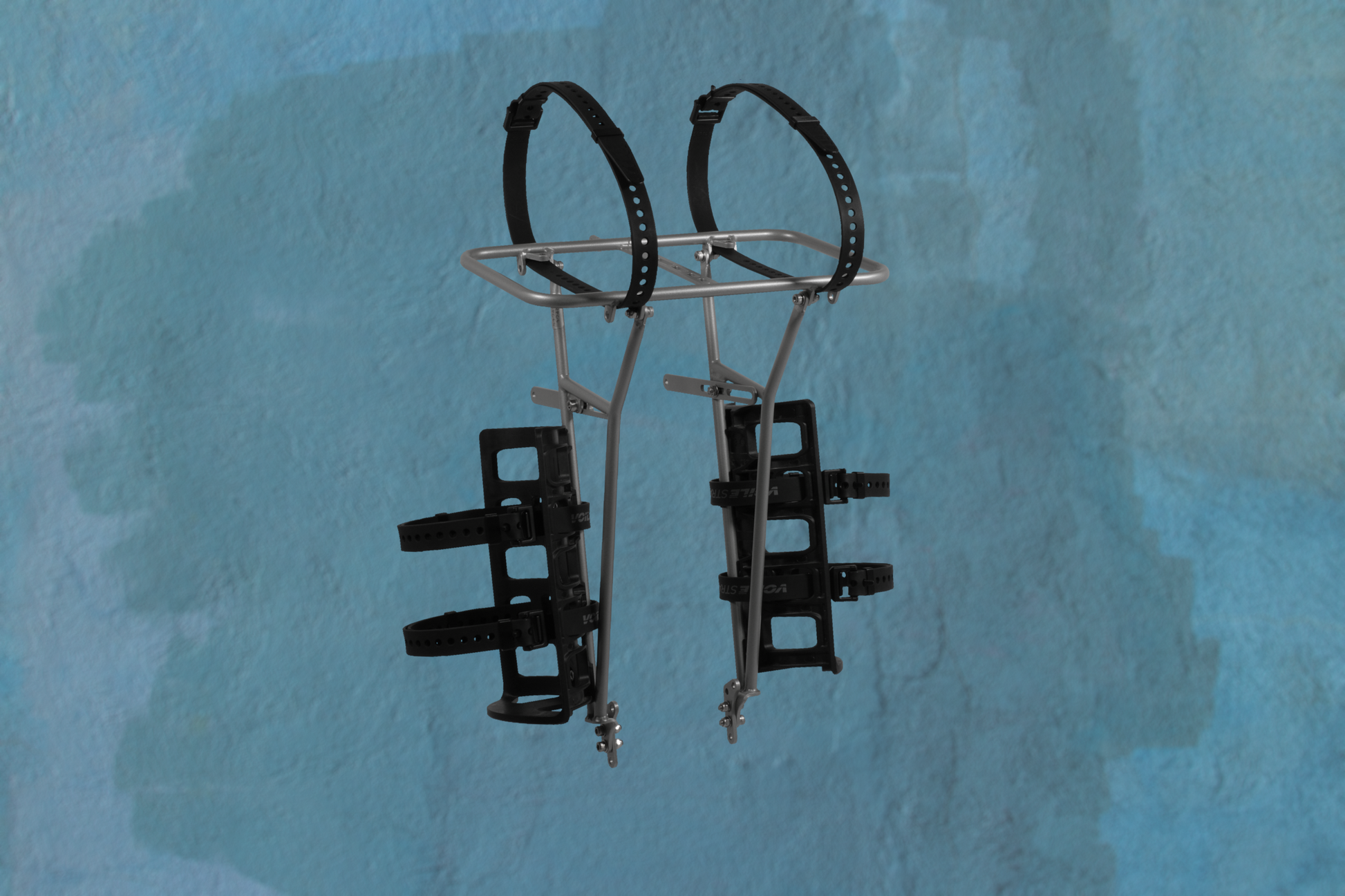

• 3-bolt cage mounting

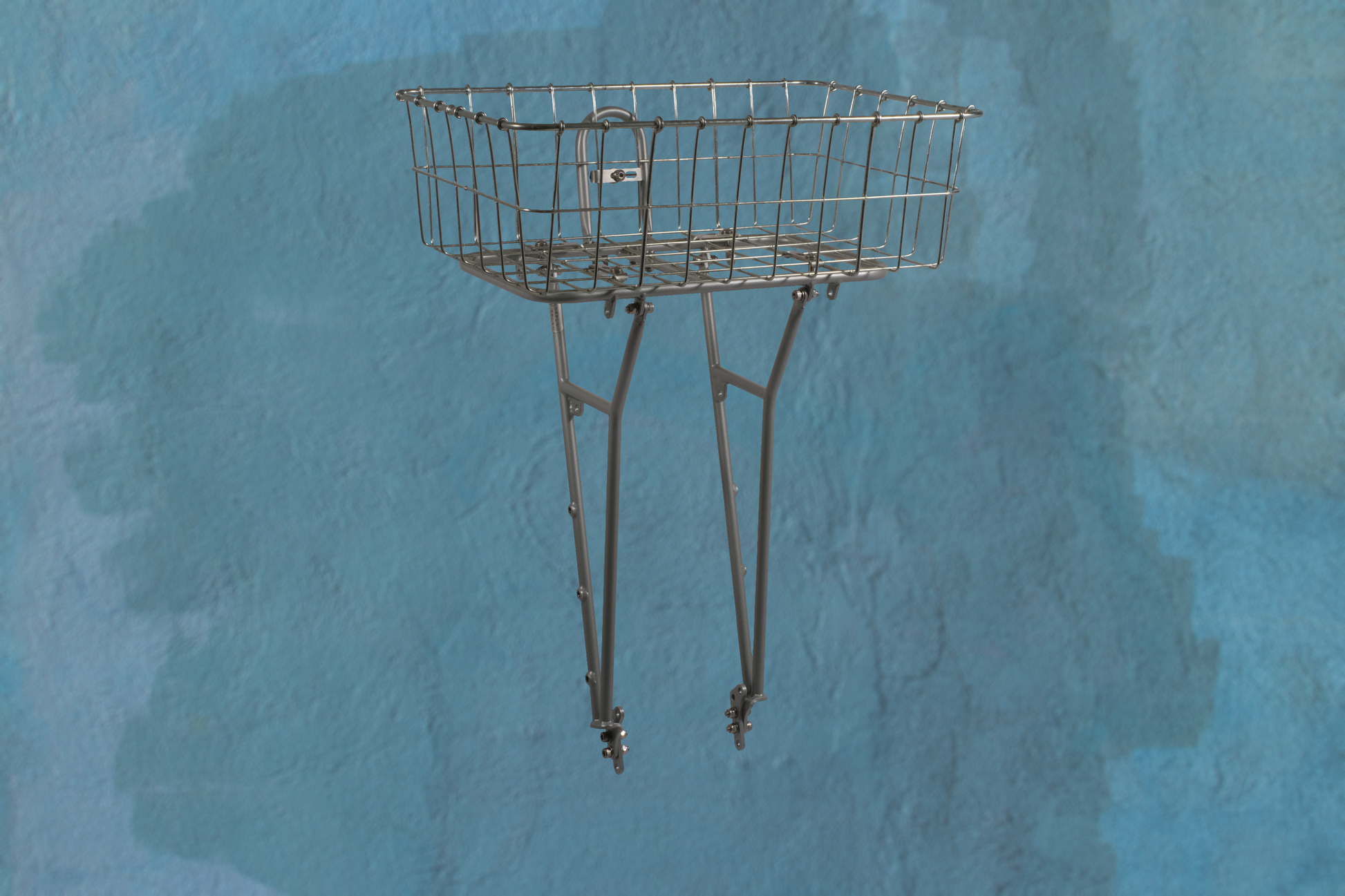

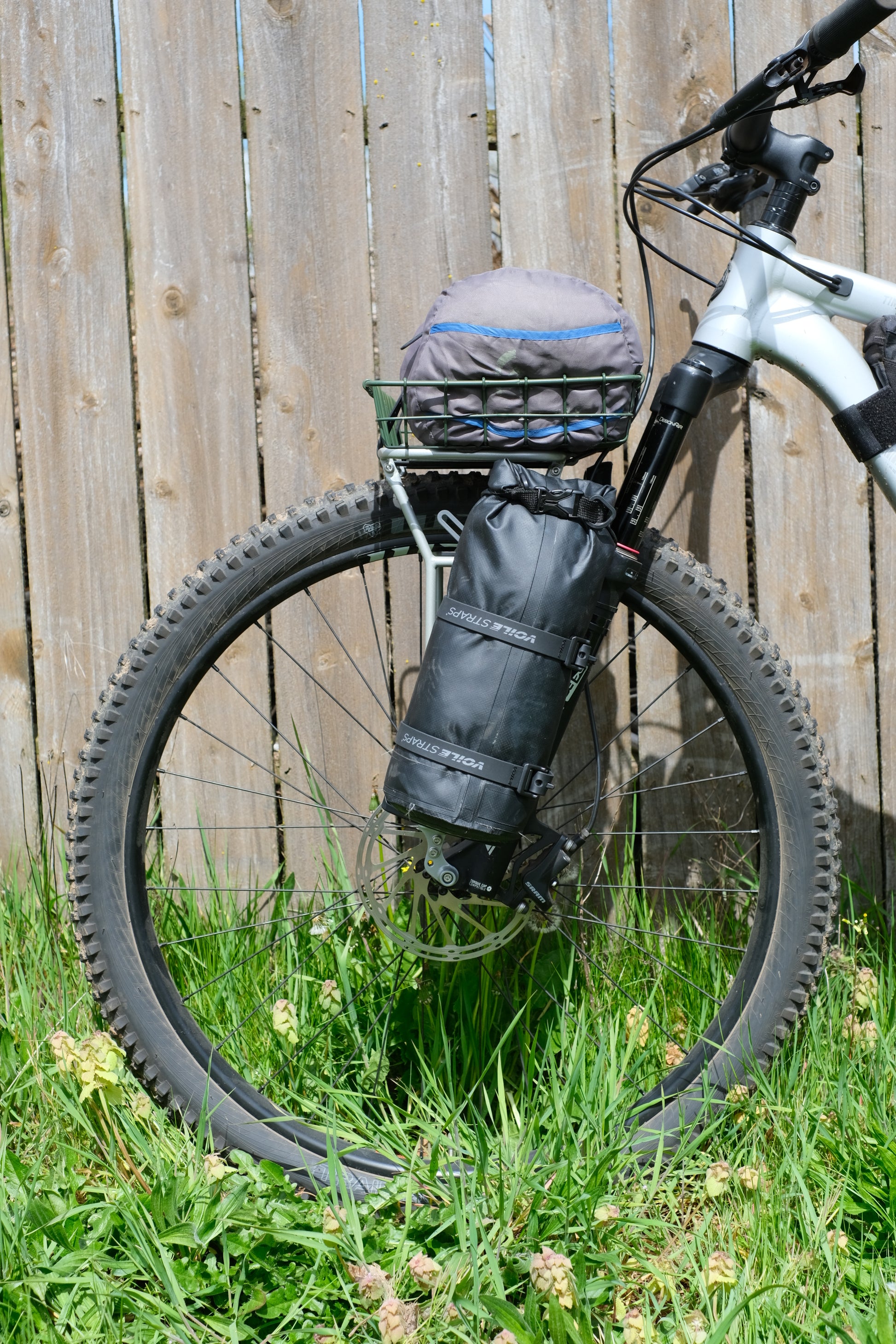

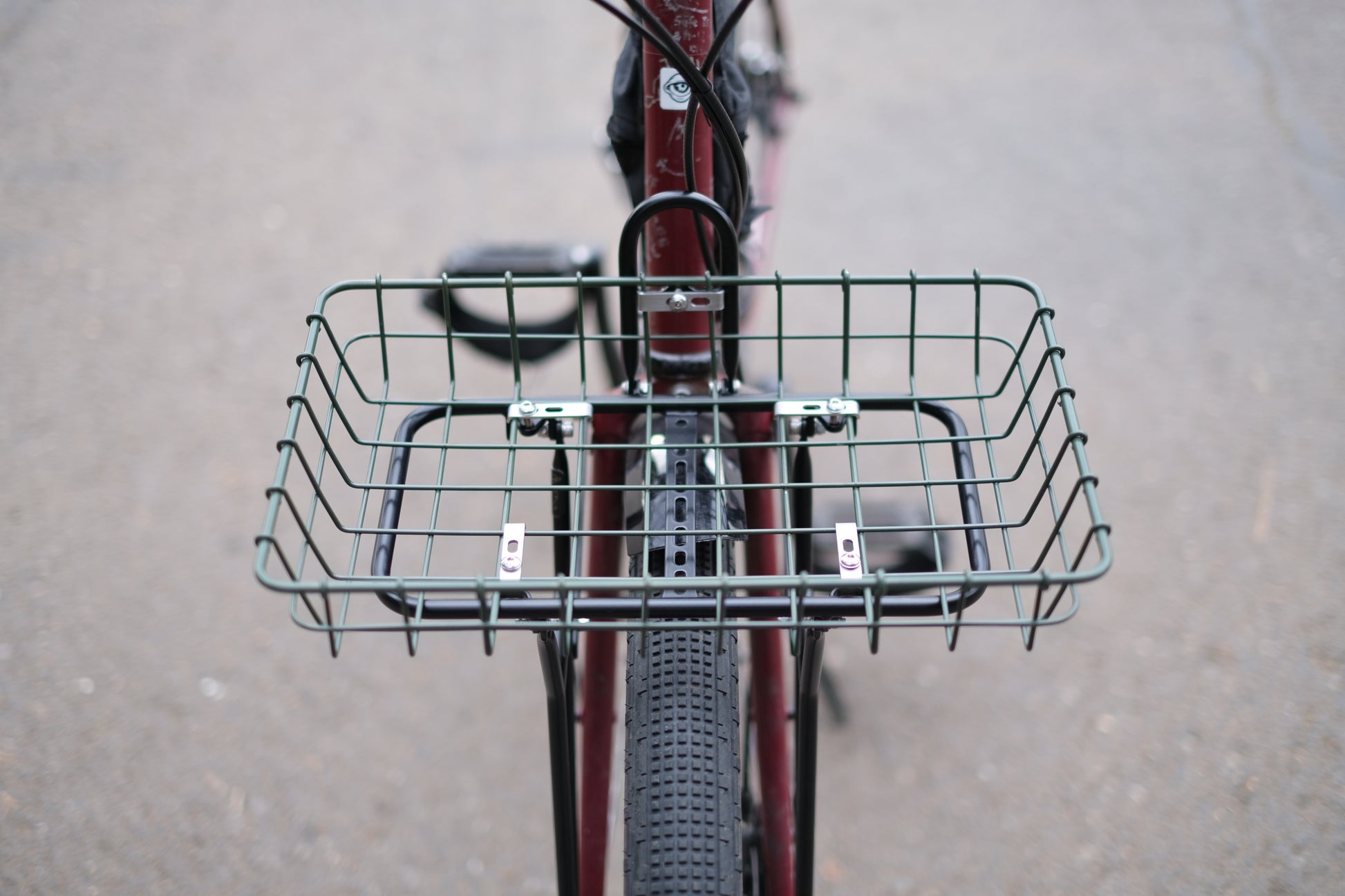

• Basket mounting
• Removable angle-adjustable backstop with lawyer tabs
• Bilateral light mounting for rechargeable or dynamo lights in upright and inverted positions
• Disassembles for bike travel

Compatibility:

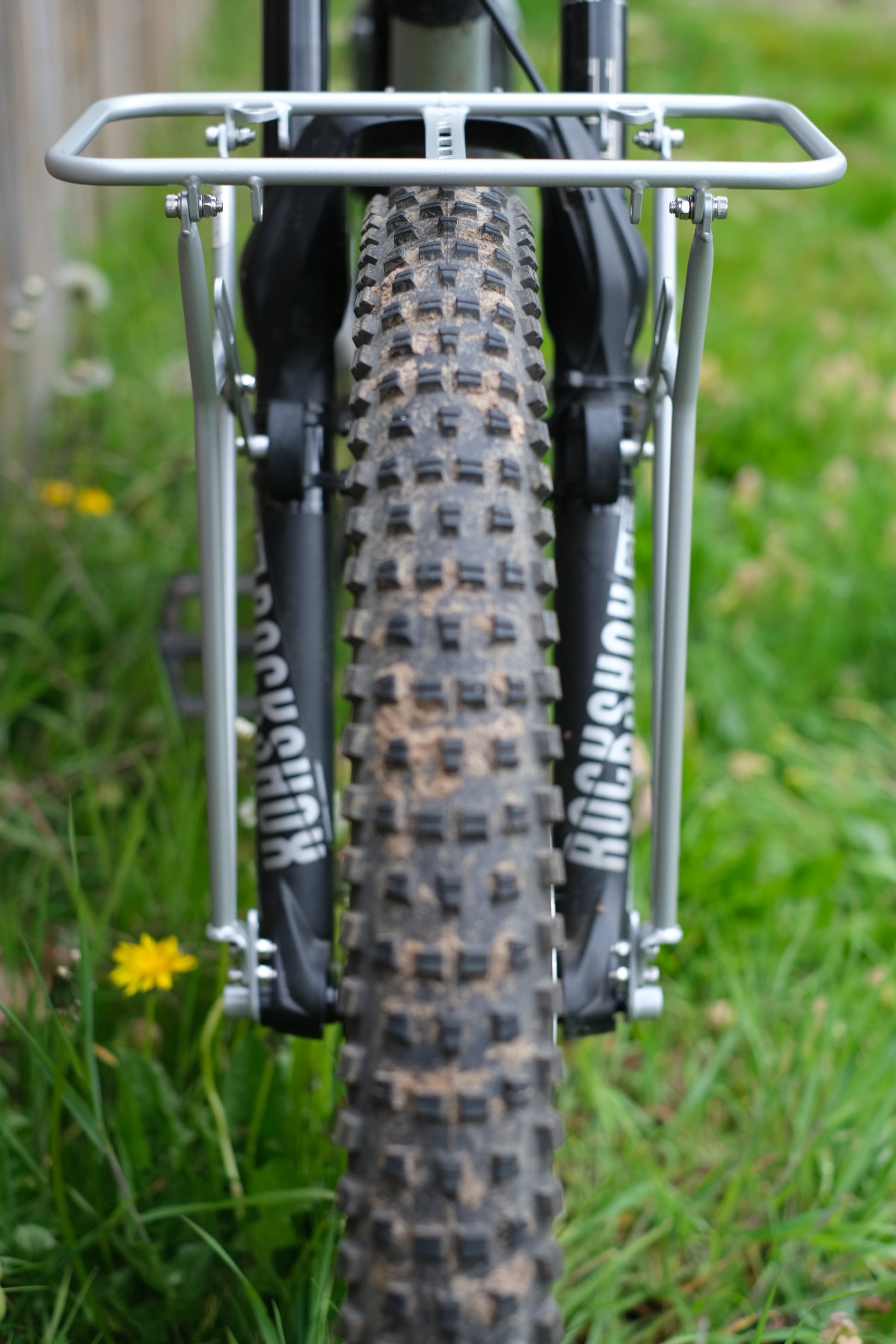

• 26" to 29" conventional rigid and suspension forks
• 26" to 29"+ tires
• Disc brakes, direct-pull brakes (linear-pull or v), cantilever brakes, and most caliper brakes
• Standard to Boost fork spacing
• Dropouts with rack eyelets and/or fender eyelets (quick release axle)
• Dropouts with no eyelets (solid threaded axle & nut)
• Thru axle dropouts (Robert Axle Project thru axles and Old Man Mountain MTB Fork Pucks or Old Man Mountain Road/Gravel/Cross Fork Pucks)

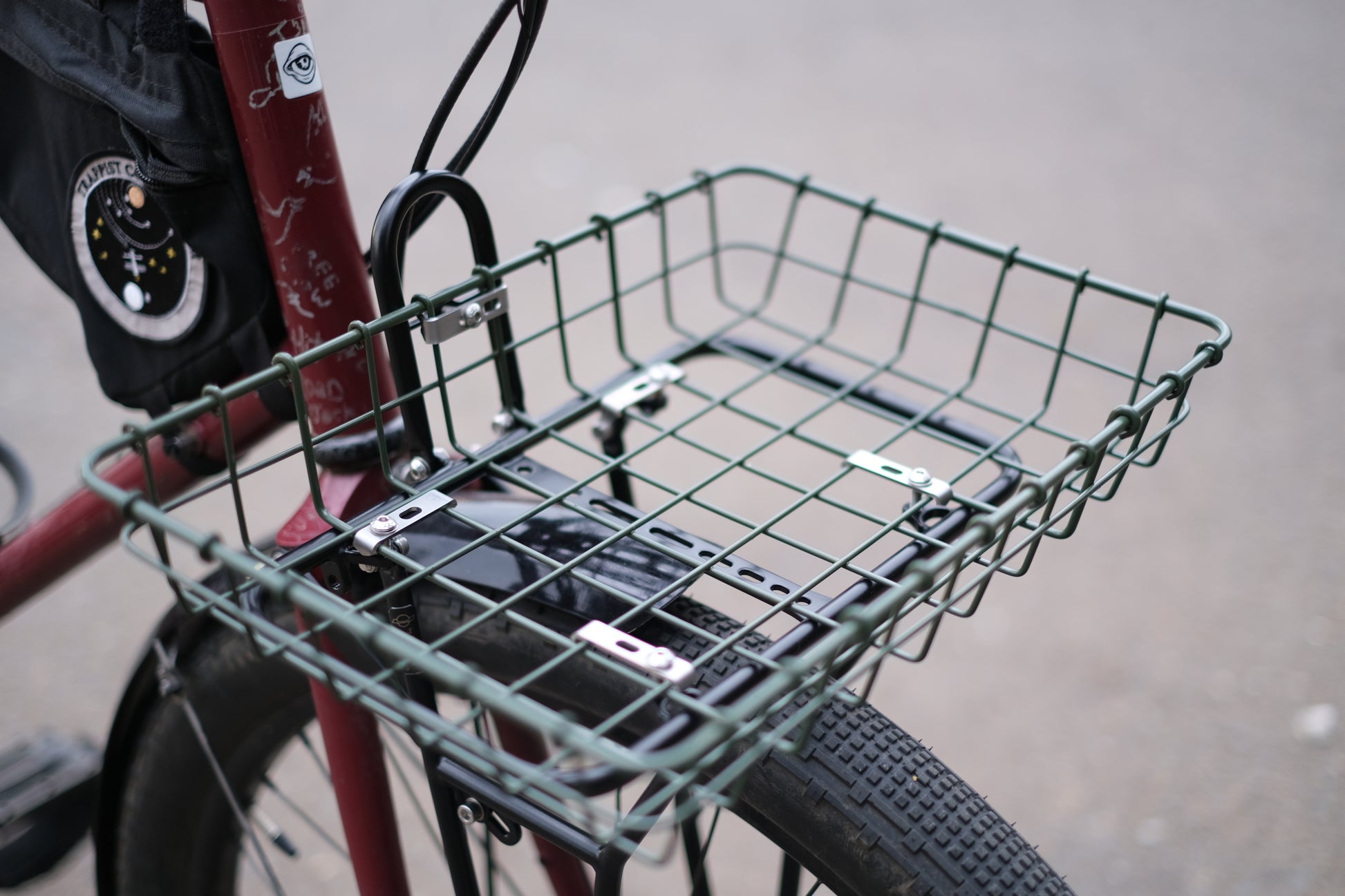

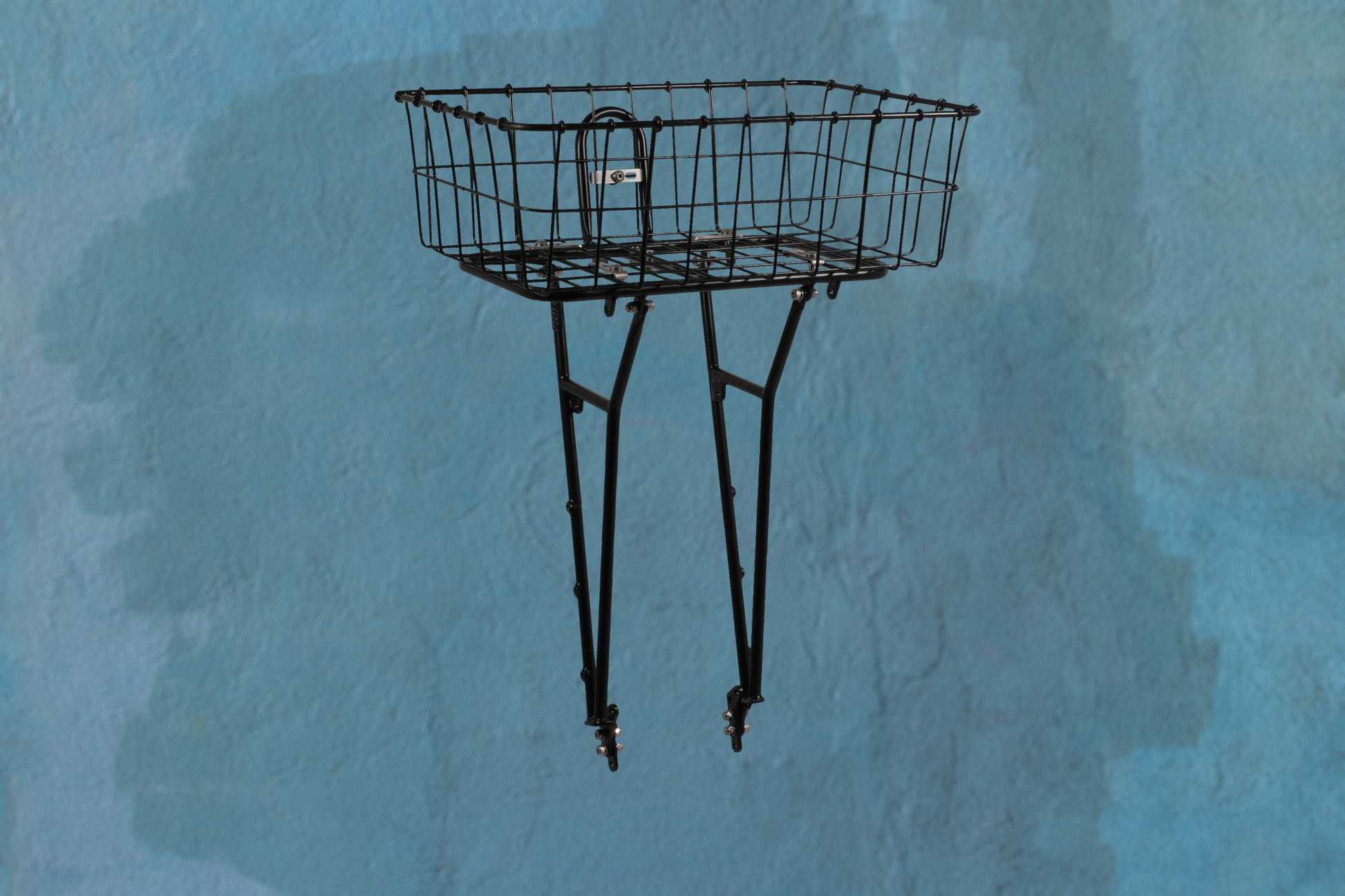

• Baskets: Wald 137 (standard & half height), Tanaka (standard and half height), and PDW Zig Zag (medium)

Specifications:

• Platform outer dimensions: 6.7in x 11.8in (17cm x 30cm)
• Maximum weight capacity: 25lbs (11.3kg)

Includes:

• Platform, Legs, Backstop, and hardware
• Fork Crown Bracket and hardware
• Fork Blade Brackets and hardware
• Fork Rack Dropout Brackets and hardware
• Basket Hold-Downs and hardware
• Light Mount and hardware
• Installation Guide
