Simplex | Strut

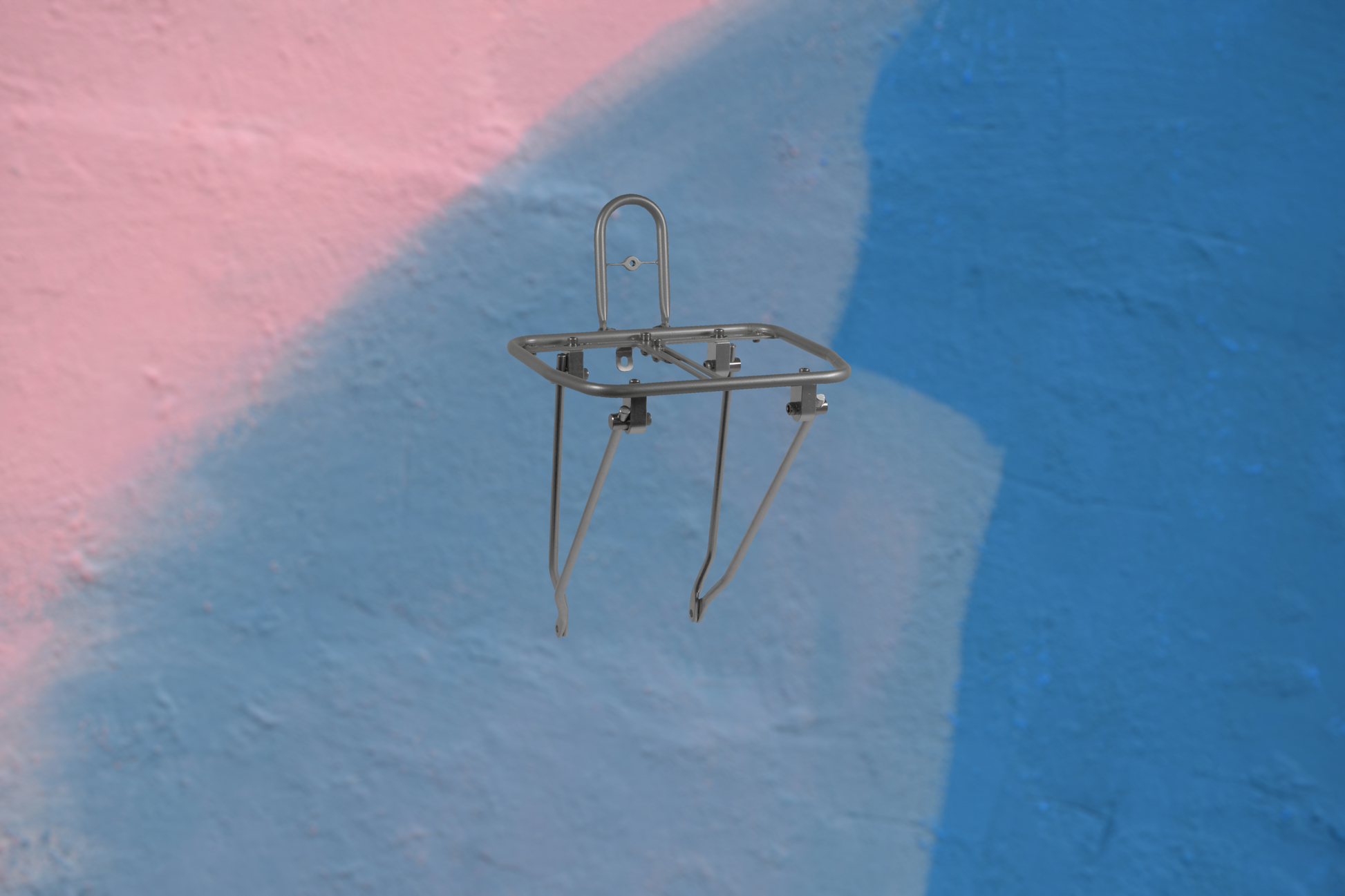

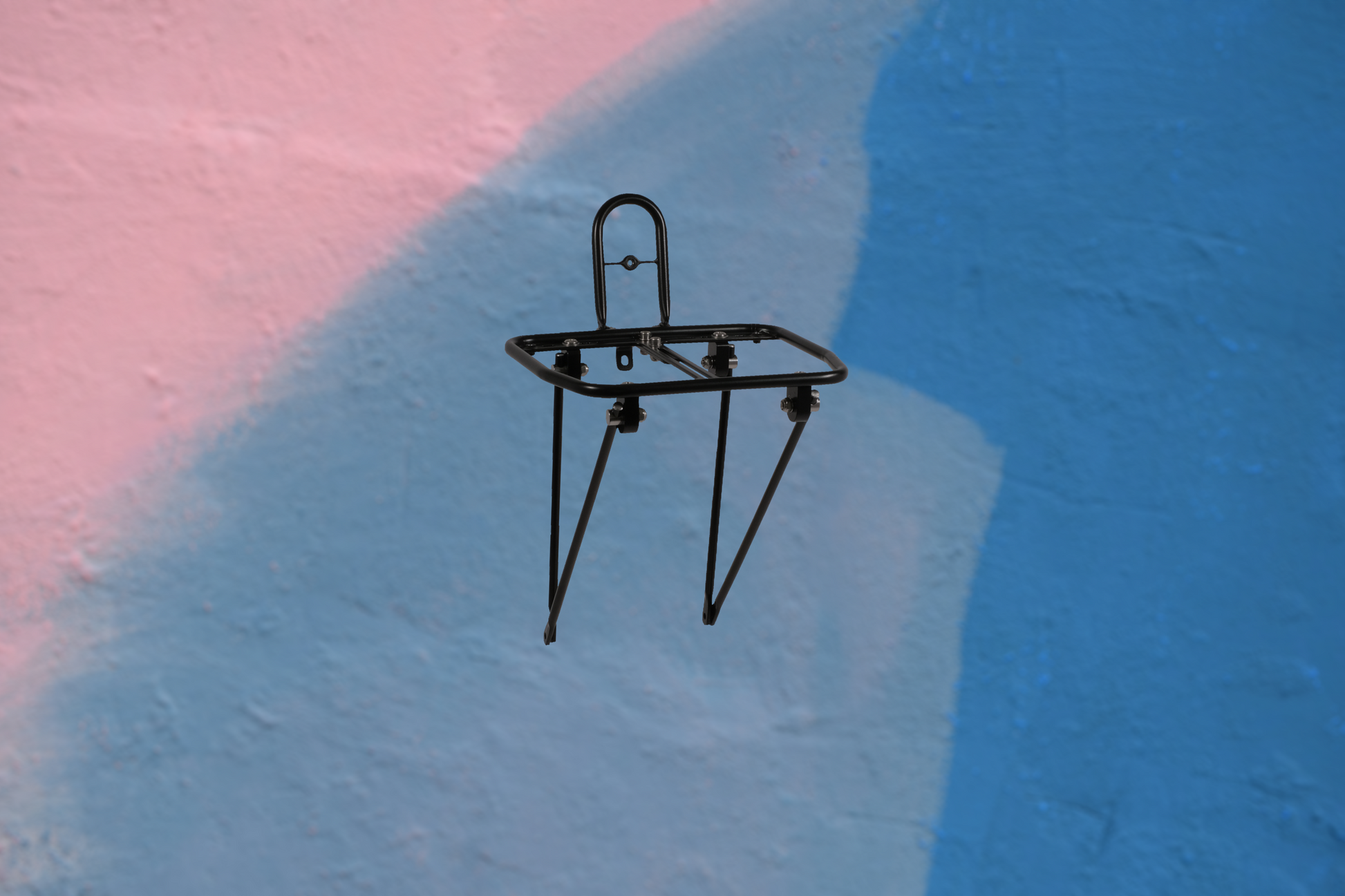

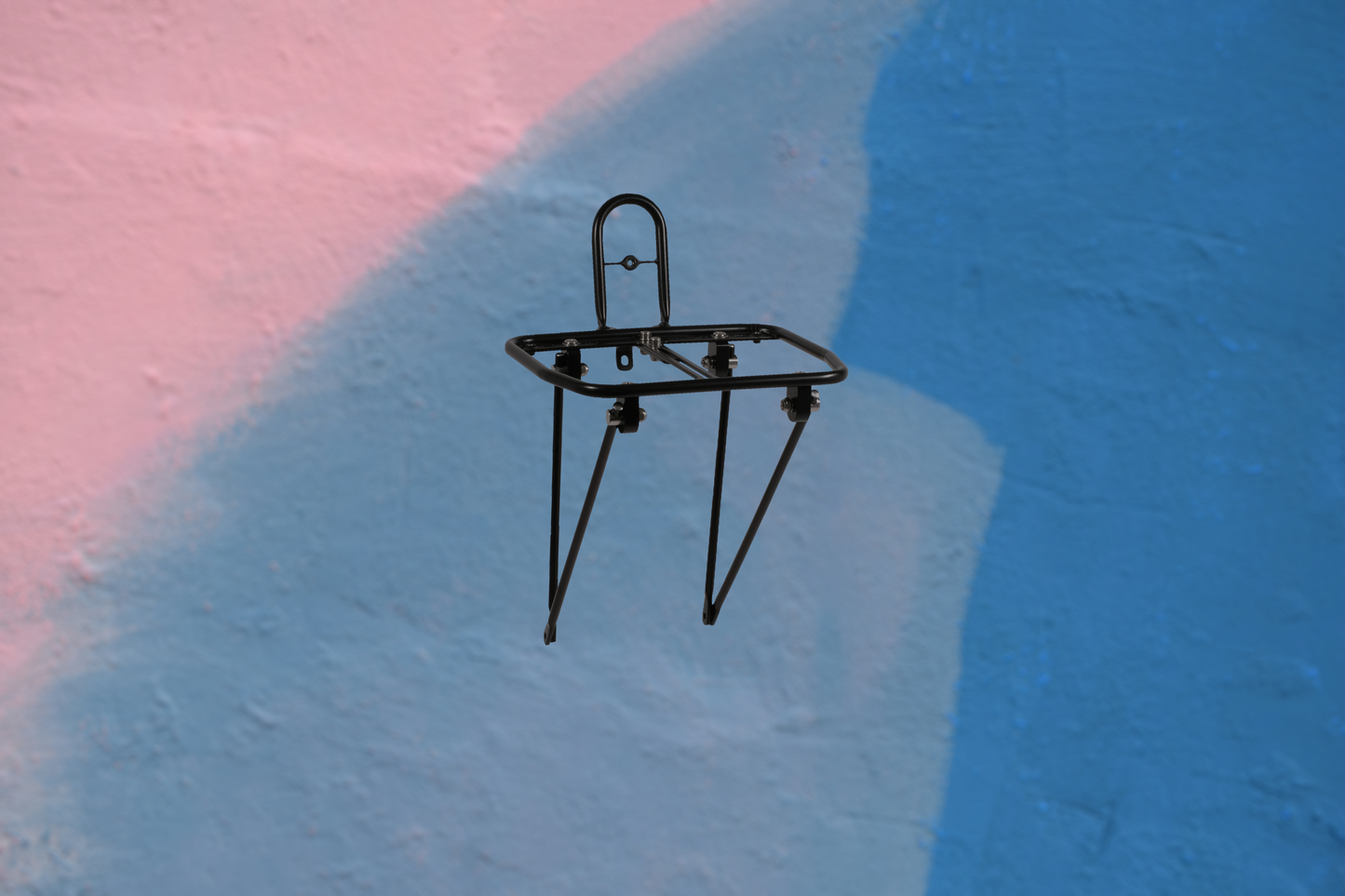

Simplex Rack with cut-to-length strut legs

Adaptable, strong and lightweight front rack for commuting.

Construction:

• Quality TIG welded 4130 steel tubing
• Durable powder coat finish
• Stainless steel fasteners

Features:

• Adaptable to a range of tire sizes and fork widths

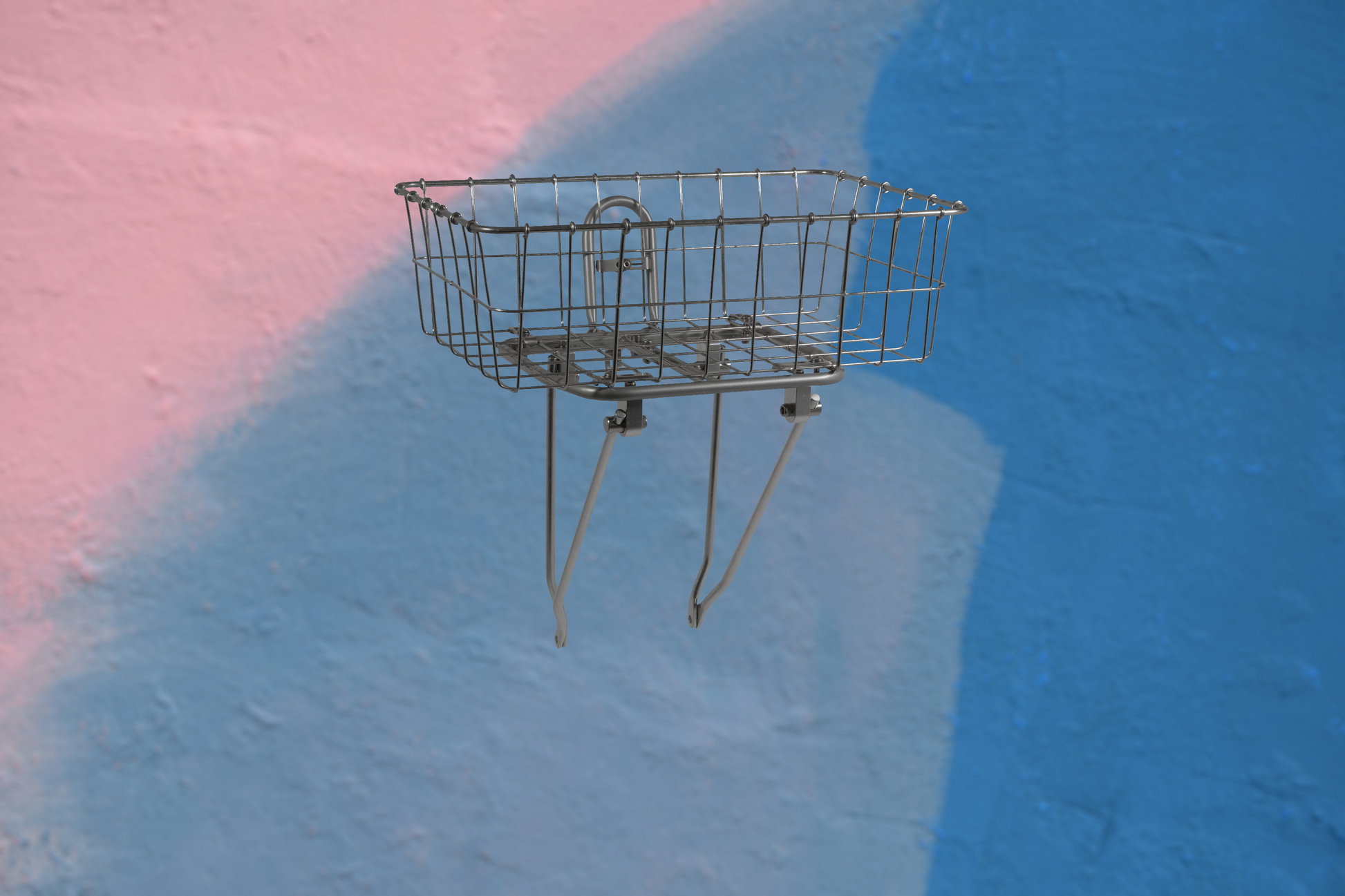

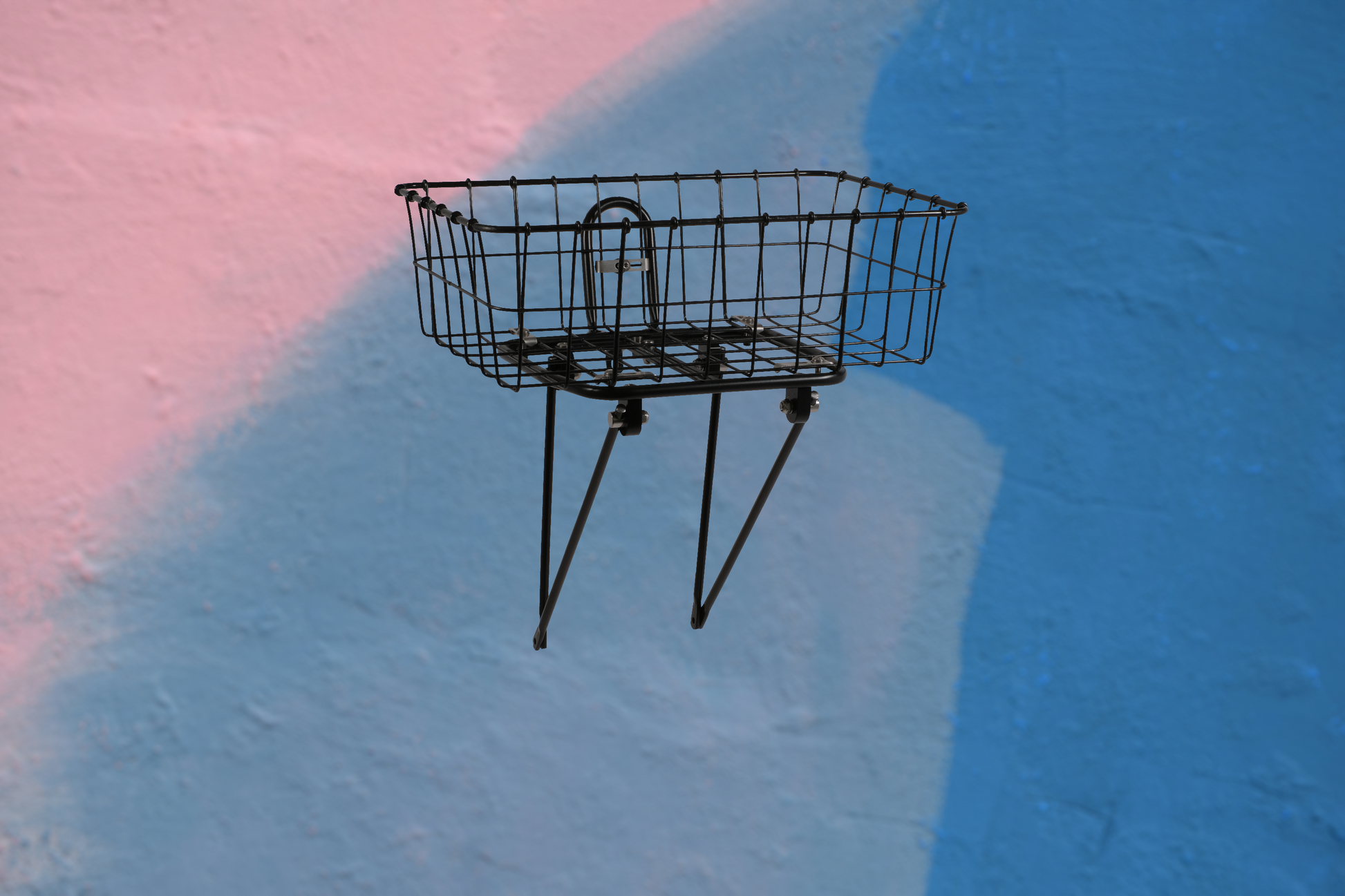

• Basket mounting
• Removable angle-adjustable backstop with lawyer tabs
• Bilateral light mounting for rechargeable or dynamo lights in upright and inverted positions
• Disassembles for bike travel

Compatibility:

• Rigid forks with crown center thru hole AND mid-blade rack eyelets
• 20" to 29"+ tires

• Baskets: Wald 137 (standard and half height), Tanaka (standard and half height), PDW Zig Zag (medium), and ?

Specifications:

• Platform outer dimensions: 7.75in x  10.25in (19.7cm x 26cm)
• Maximum weight capacity: 12lb (5.4kg)

Includes:

• Platform, Legs, Backstop, and all hardware
• Fork Crown Bracket and hardware

• Basket Hold-Downs and hardware
• Light Mount and hardware
• Installation Guide
